Desiccant Air Dryers | Heatless Modular Dryers

DRYERS - COMPRESSED AIR / DESICCANT COMPRESSED AIR DRYERS

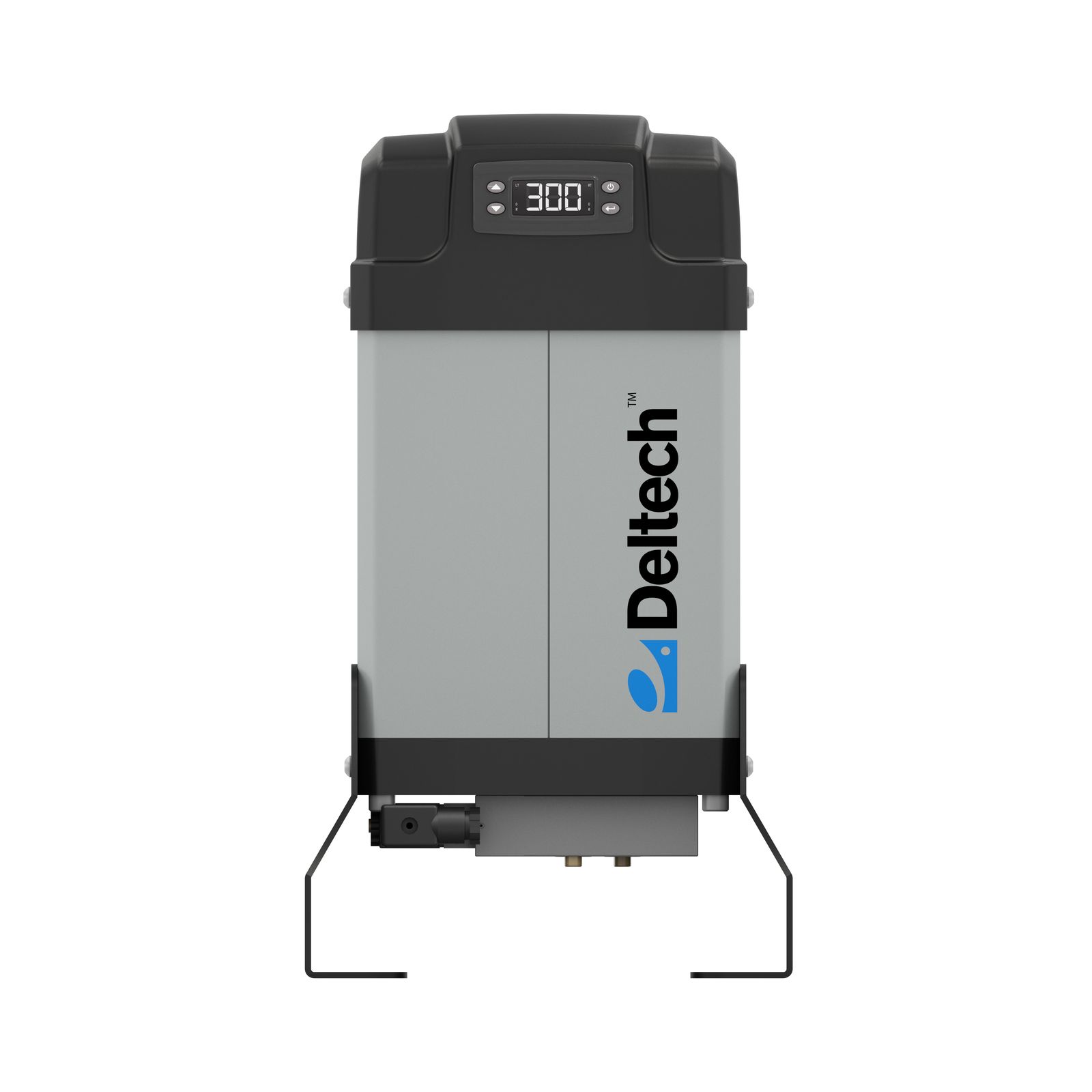

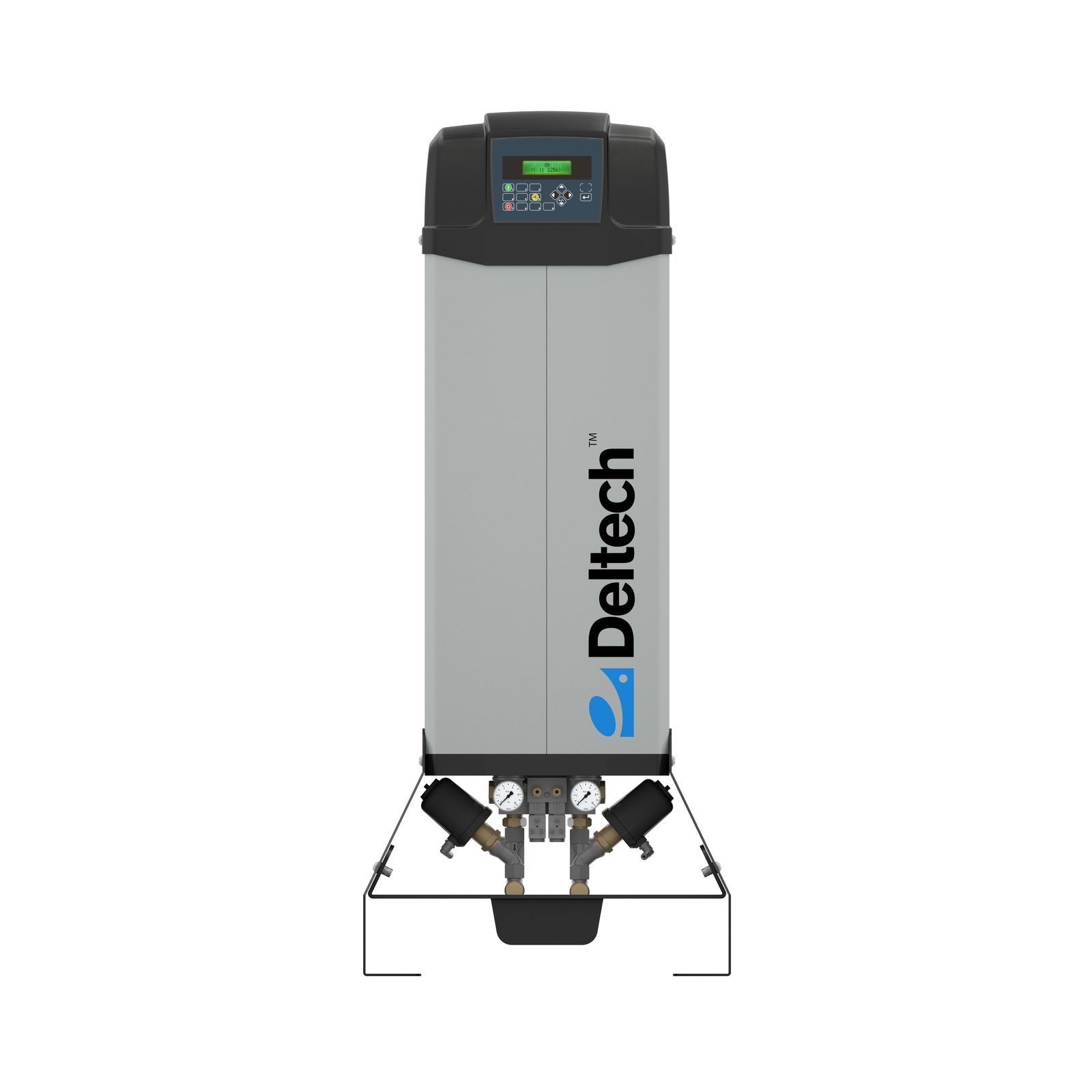

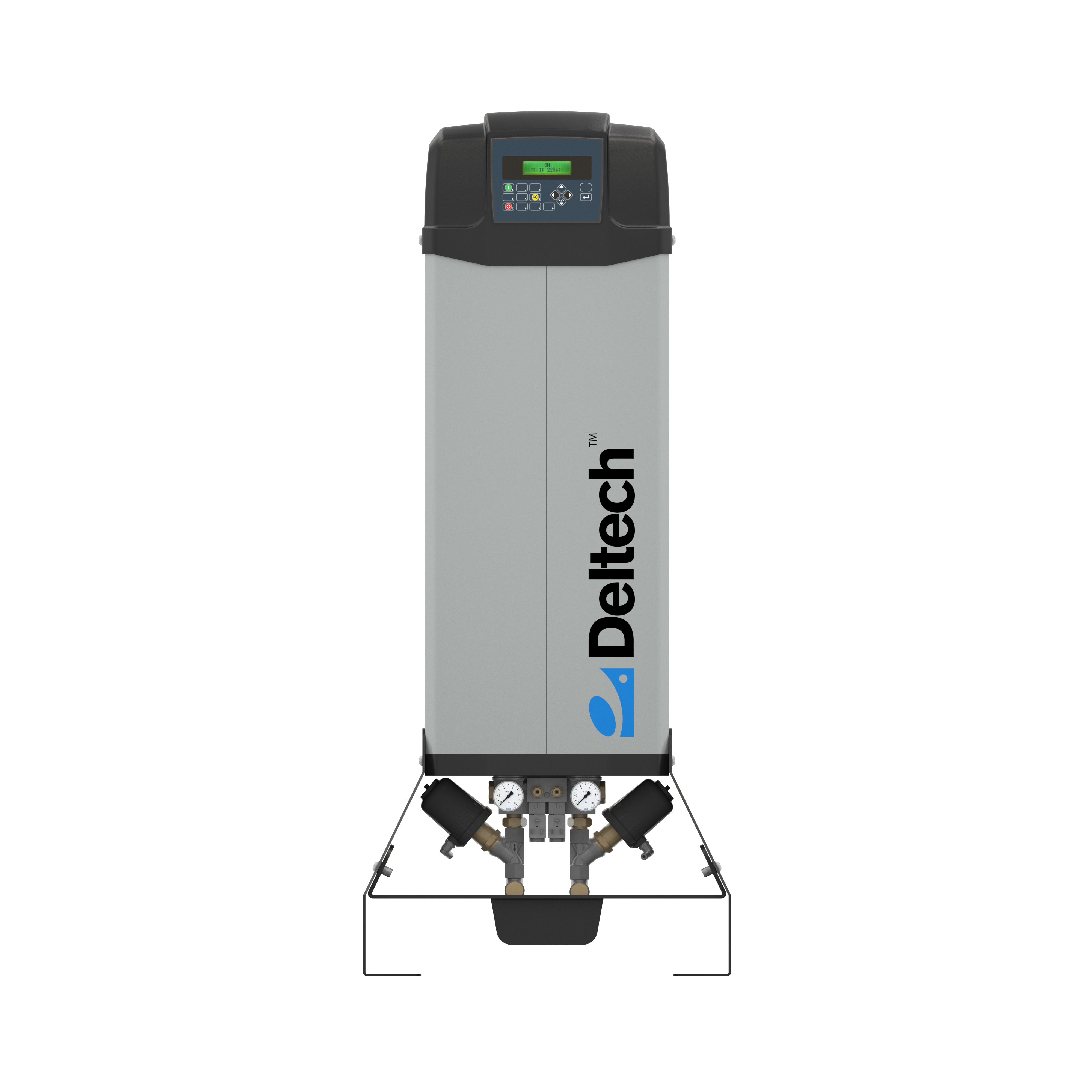

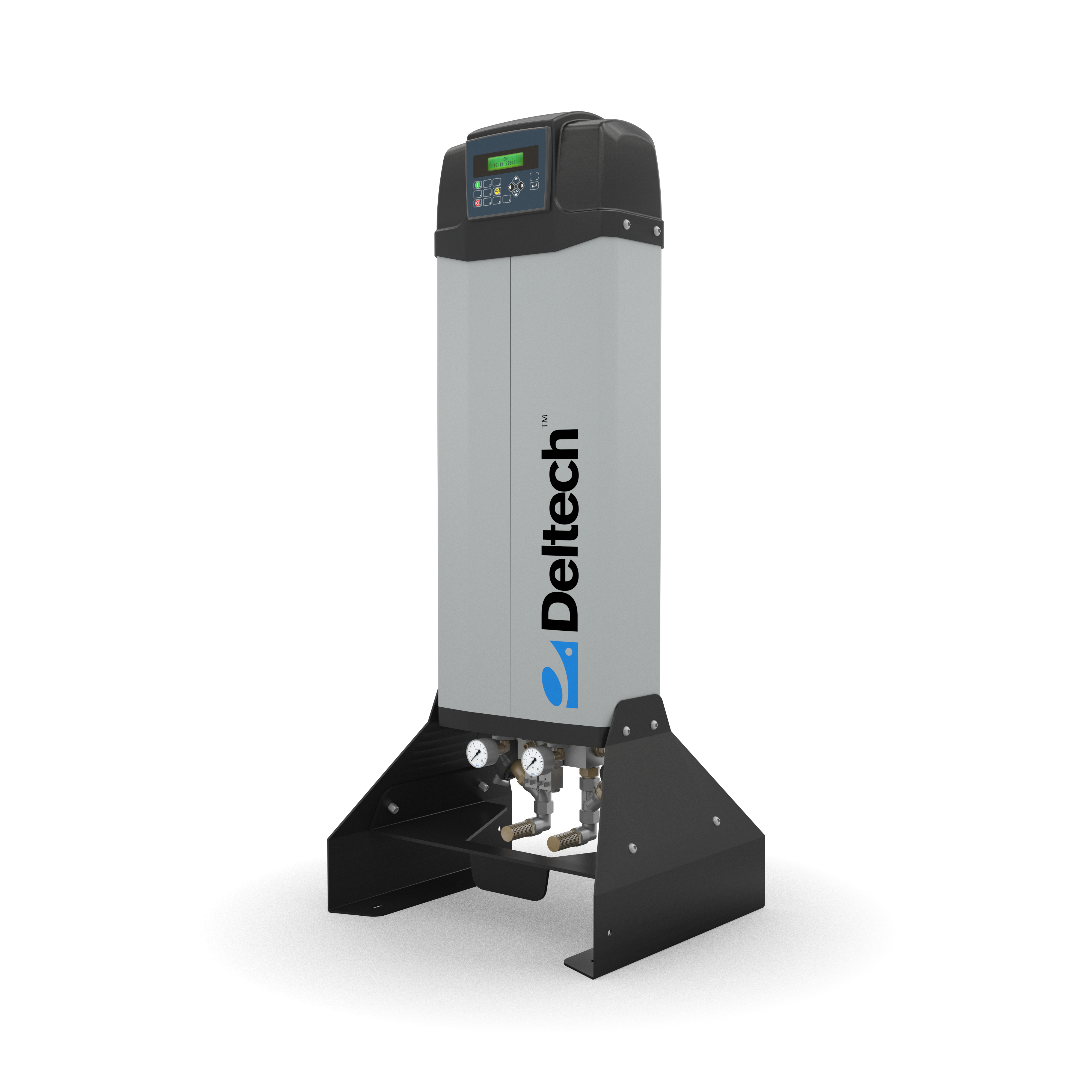

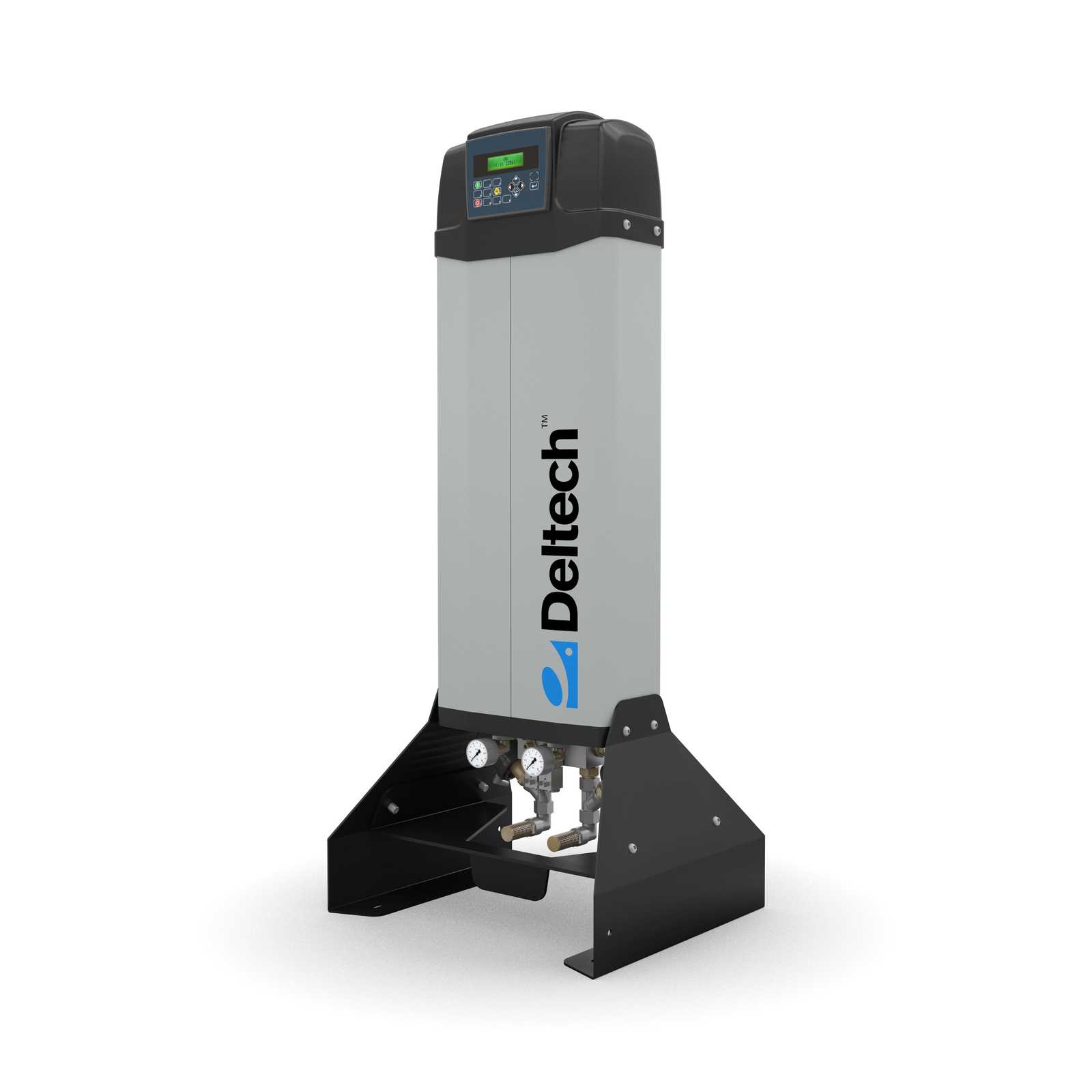

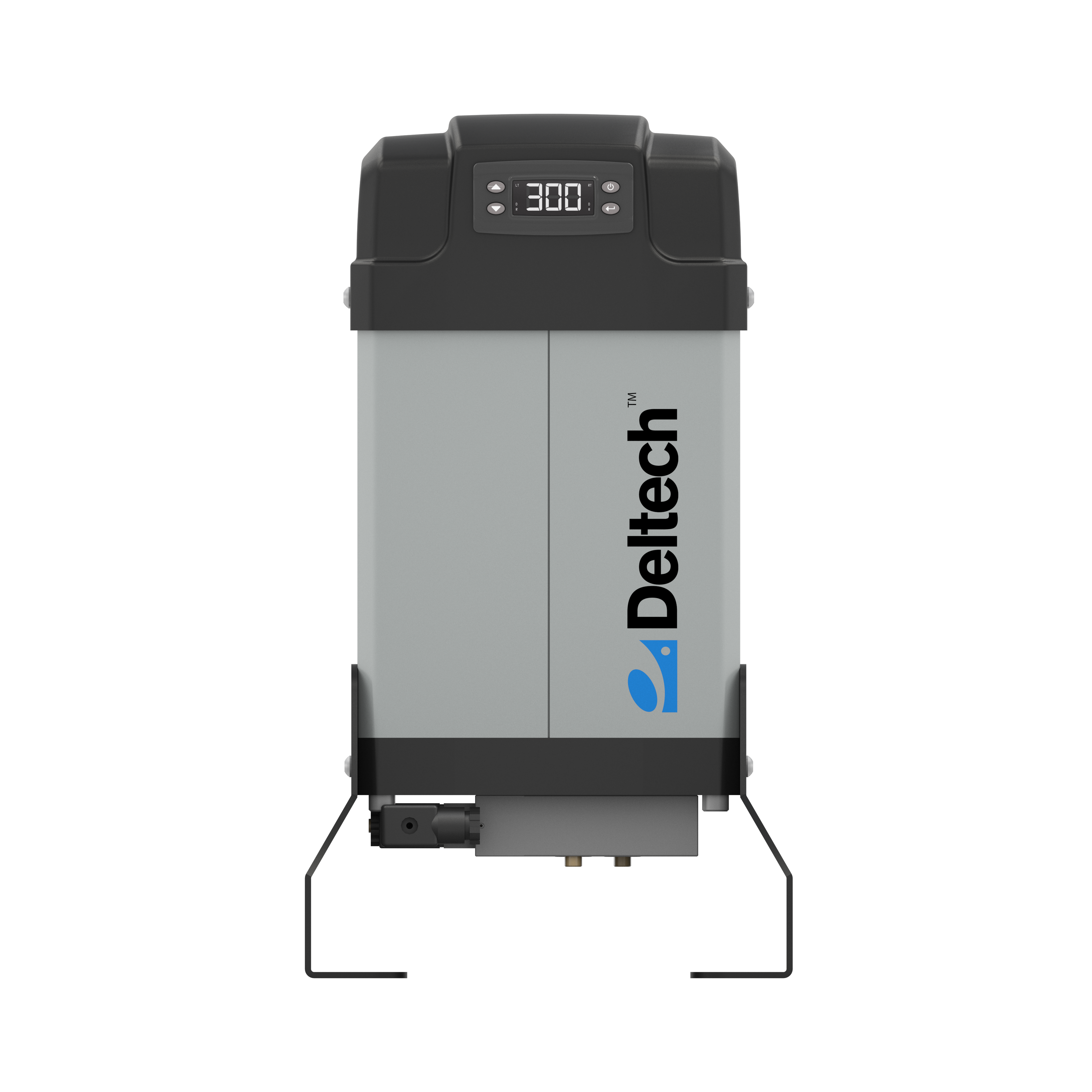

DHDM Series Modular Desiccant Air Dryers are ideal for point of use, laboratories and confined areas. They provide a continuous supply of dry compressed air by automatically cycling the flow of air through two desiccant beds.

The Deltech DHDM Series Modular Desiccant Air Dryers protect moisture sensitive applications requiring low pressure dew points. Delivers dew points of ISO 8573-1: 2010 Class 1 (-94°F, -70°C) and Class 2 (-40°F, -40°C) with flow rates of 3 to 177 scfm (5m3/h to 300m3/h). Critical applications include labs, hospitals, pharmaceutical manufacturing and other high-tech installations.

The DHDM Series incorporate a time proven design, with superior features and reliability, in a compact and easy to install package. Standard features include:

Coalescing pre and particulate after filters (shipped loose)
Electronic Controls
Sequence indication
Durable extruded aluminum construction
Heavy duty purge exhaust muffler

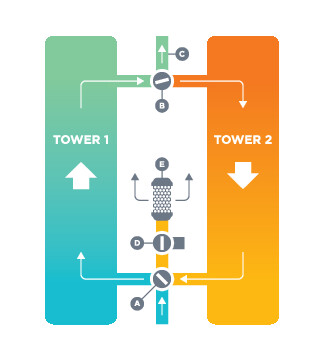

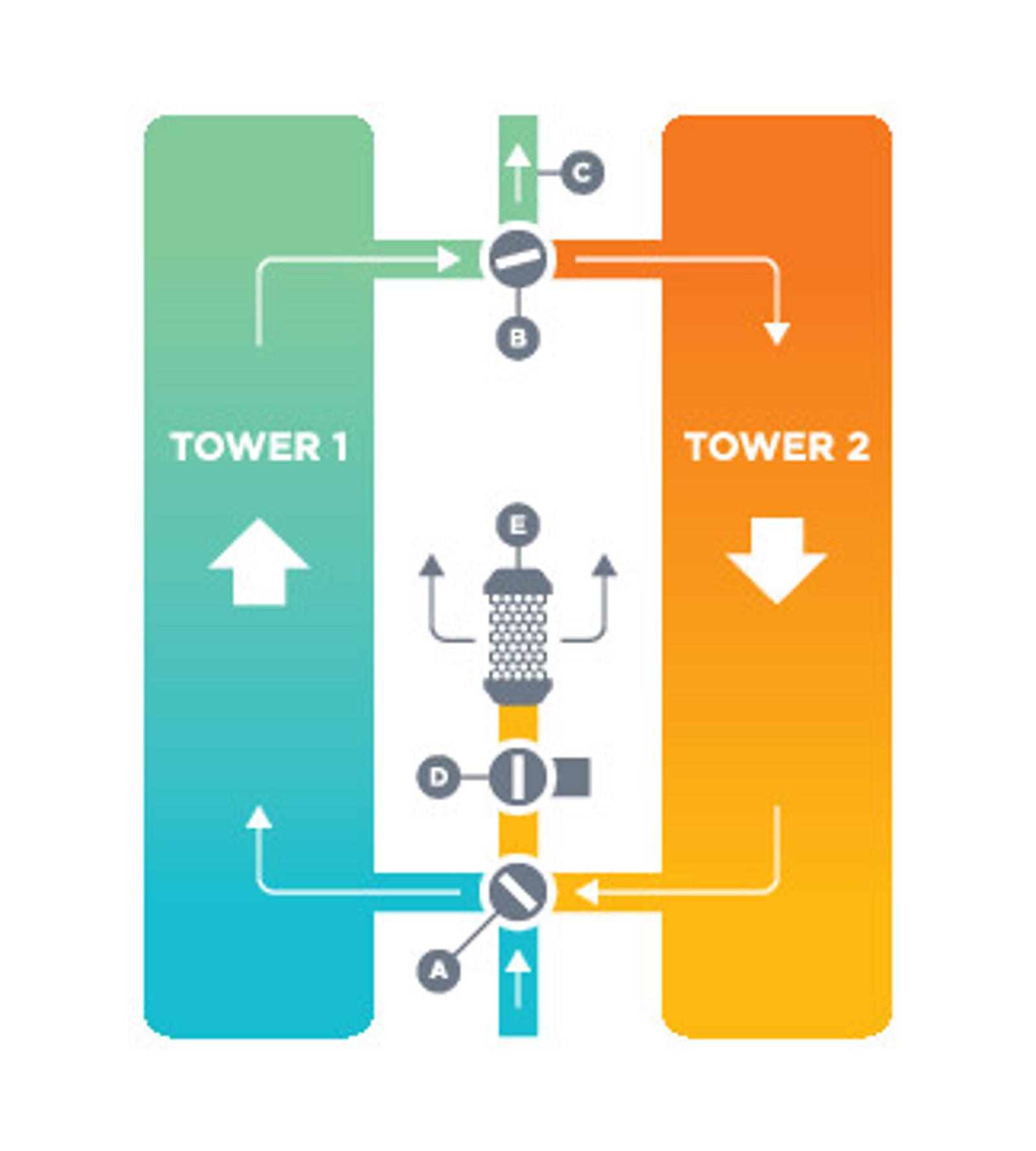

Compressed air enters the dryer and is directed to Tower 1 by valve (A), and then to the dryer outlet through shuttle valve (B). A portion of the dried air is throttled to near atmospheric pressure by means of orifice (C). This extremely dry, low-pressure air flows through and regenerates the desiccant in Tower 2 and is exhausted through purge/repressurization valve (D) and exhaust muffler (E) to atmosphere. After a set time, the automatic solid state timer closes purge/repressurization valve (D) allowing Tower 2 to repressurize slowly. At the end of 2 minutes, valve (A) shifts and purge/ repressurization valve (D) reopens. The main air flow is now dried by Tower 2 while Tower 1 is being regenerated.

Model	DIMENSIONS			IN/OUT CONNECTIONS	WEIGHT
	H (IN)	W (IN)	D (IN)	NPT	LBS	KG
DHDM 3	16.7 (424.2 MM)	9.4 (238.8 MM)	8.3 (210.8 MM)	3/8"	21.8	9.9
DHDM 9	32.4 (822.9 MM)	9.4 (238.8 MM)	8.3 (210.8 MM)	3/8"	35	15.9
DHDM 15	42.2 (1071.9 MM)	9.4 (238.8 MM)	8.3 (210.8 MM)	3/8"	46	20.9
DHDM 24	38.1 (967.7 MM)	18.7 (474.9 MM)	14.3 (363.2 MM)	1/2"	101.5	46.1
DHDM 32	44 (1117.6 MM)	18.7 (474.9 MM)	14.3 (363.2 MM)	3/4"	121.2	54.9
DHDM 41	51.9 (1318.3 MM)	18.7 (474.9 MM)	14.3 (363.2 MM)	3/4"	136.7	62
DHDM 59	65.9 (1673.9 MM)	18.7 (474.9 MM)	14.3 (363.2 MM)	1"	180.8	82
DHDM 88	73.7 (1871.9 MM)	18.7 (474.9 MM)	14.3 (363.2 MM)	1"	186.5	84.6
DHDM 118	67.1 (1704.3 MM)	21.1 (535.9 MM)	19.5 (495.3 MM)	1-1/2"	352.7	160
DHDM 147	75 (1905 MM)	21.1 (535.9 MM)	19.5 (495.3 MM)	1-1/2"	396.8	180
DHDM 177	75 (1905 MM)	21.1 (535.9 MM)	19.5 (495.3 MM)	1-1/2"	396.8	180
