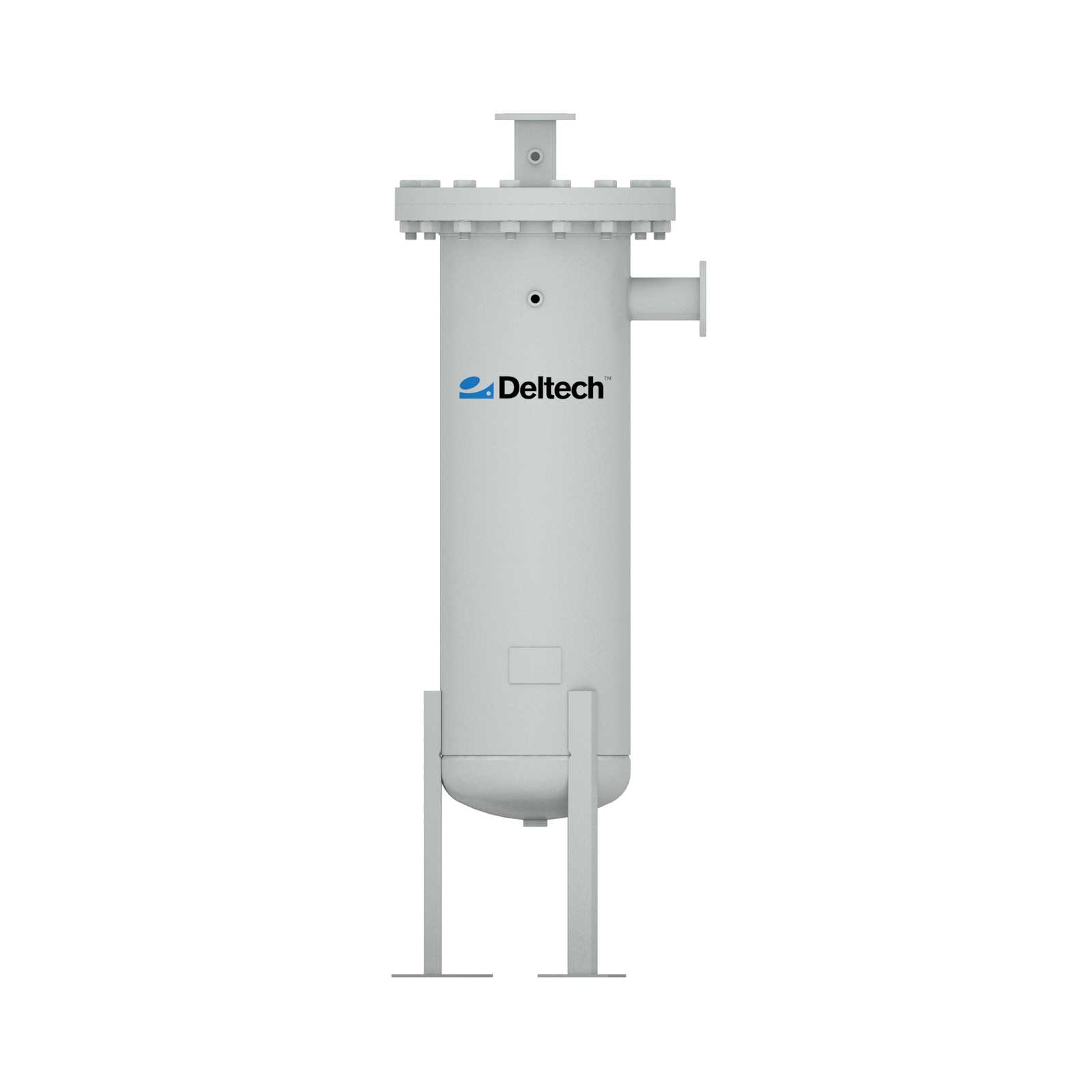

Removes submicronic particles for ultra clean air:
- 100% of particles 3 microns and larger
- 99.98% of particles 0.1 micron and larger
- 0.5 ppm w/w maximum liquid content after filtration
- 1000 ppm maximum inlet liquid loading
- Low pressure drop: 0.5 to 1 psi (0.04 to 0.07 kgf/cm2)
- Long element life: 8 to 15 years
- Virtually maintenance free
Extra protection:
- Captures and retains large slugs of oil and water, should drain trap fail
- Protects downstream equipment from contamination should oil separator on rotary screw compressor fail
Standard Features:
- 5-year equipment warranty
- 5-year element life guarantee
- Differential pressure gauge mounted and piped
- Heavy duty ASME stamped pressure vessel
- Long life mist eliminator element
- Floor stand
- Dedicated vent port for demand type drains
