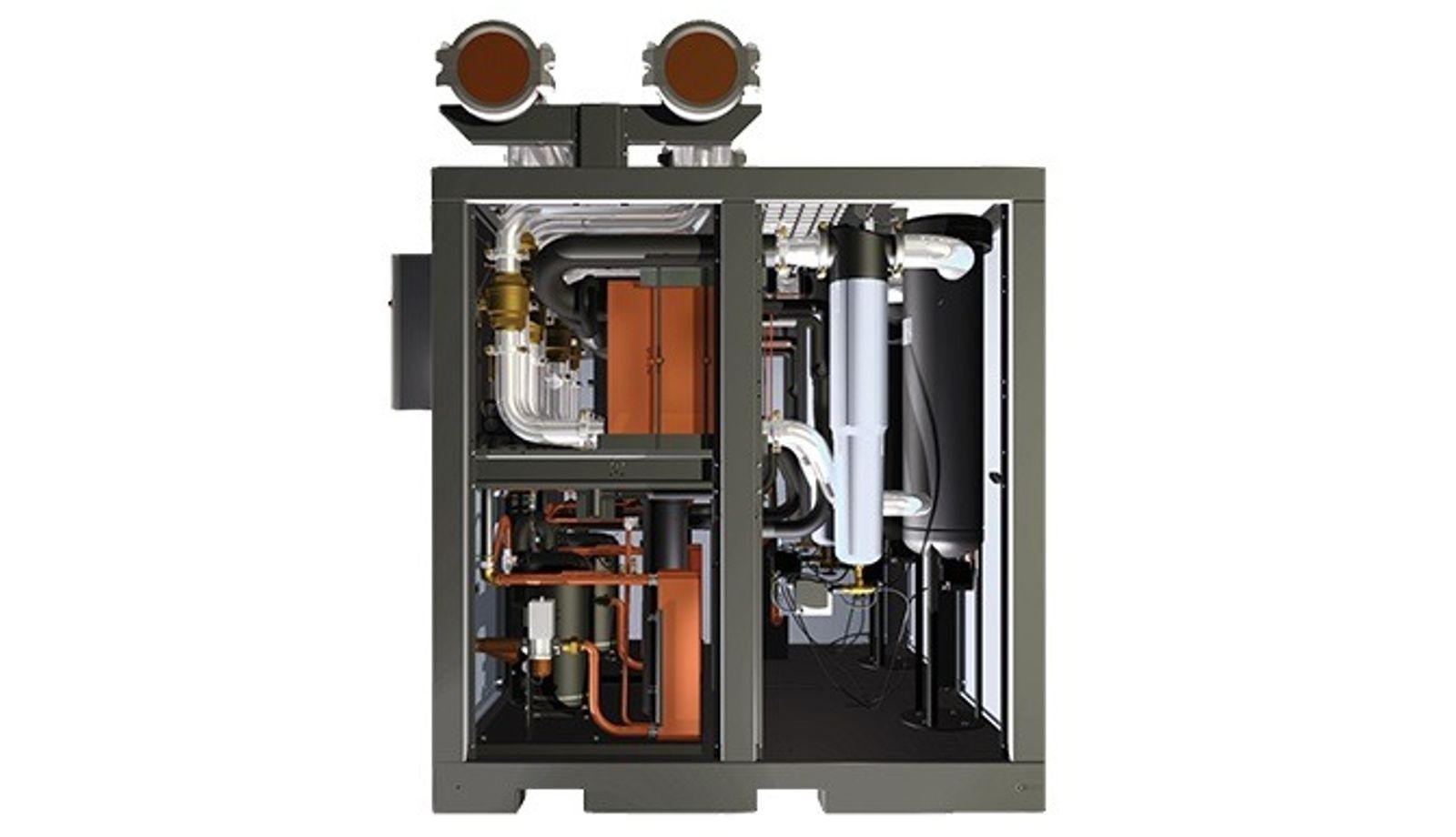

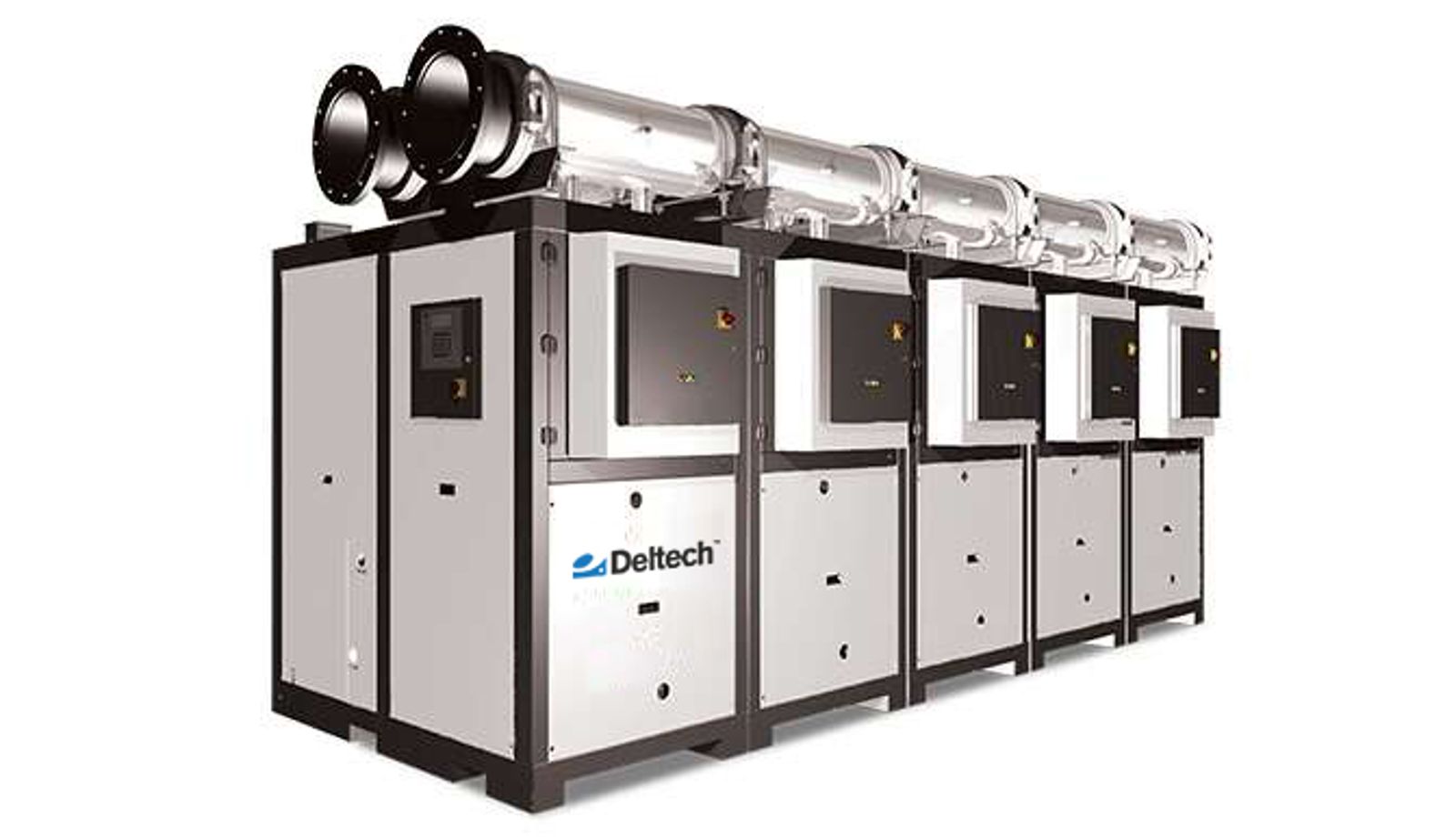

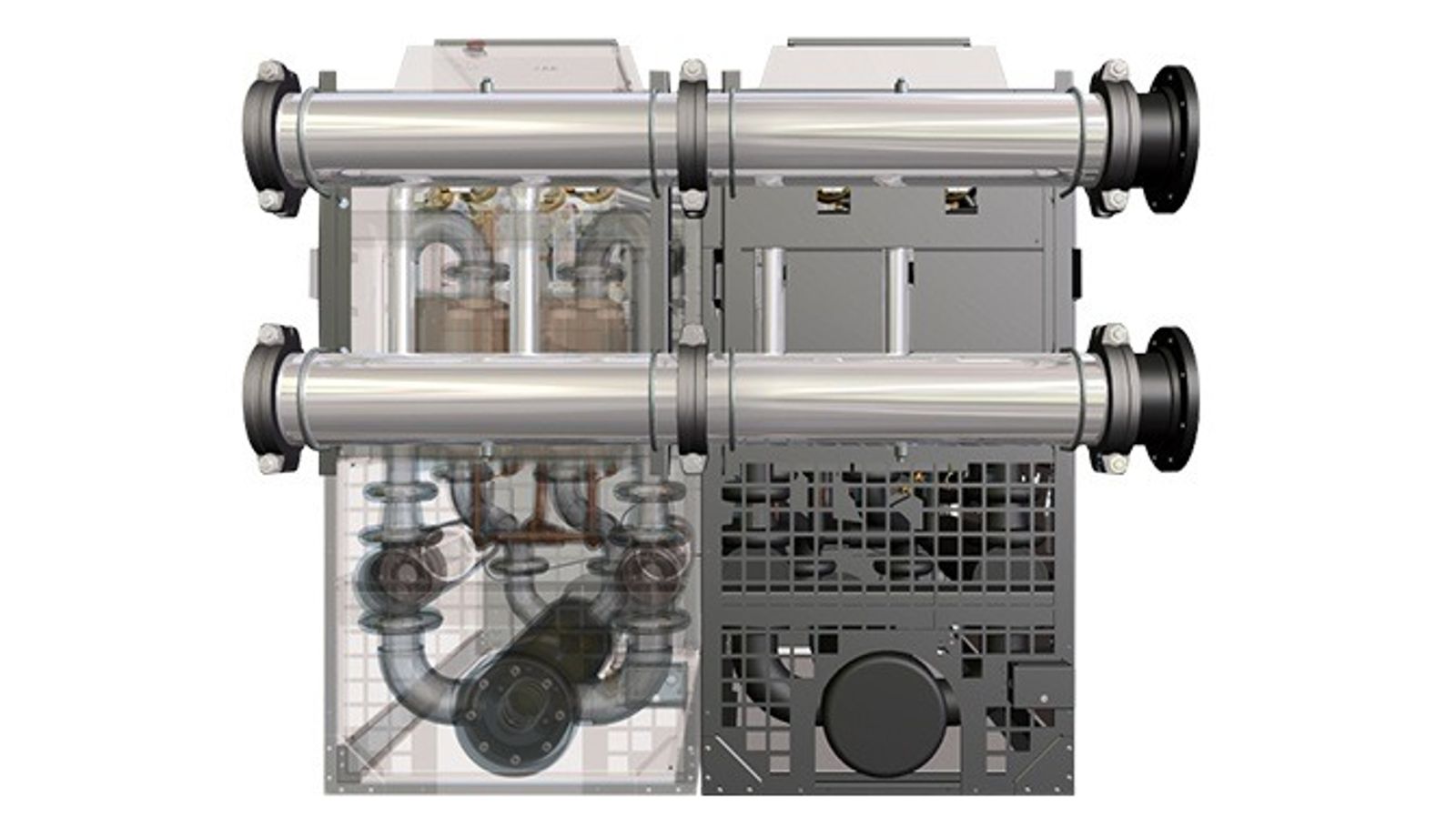

DES Series - High-Capacity Refrigerated Air Dryers

AIR & GAS TREATMENT / REFRIGERATED COMPRESSED AIR DRYERS

DES Series (3750 to 12500 scfm) utilizing the latest technological advancements, DES Series refrigerated dryers offer a new way of thinking and innovative approach to efficiently treat compressed air

Demonstrating our commitment to continuous development of sustainable solutions, the DES Series significantly lowers total cost of operation by consuming electrical power (kWh) in direct proportion to real-time demand.

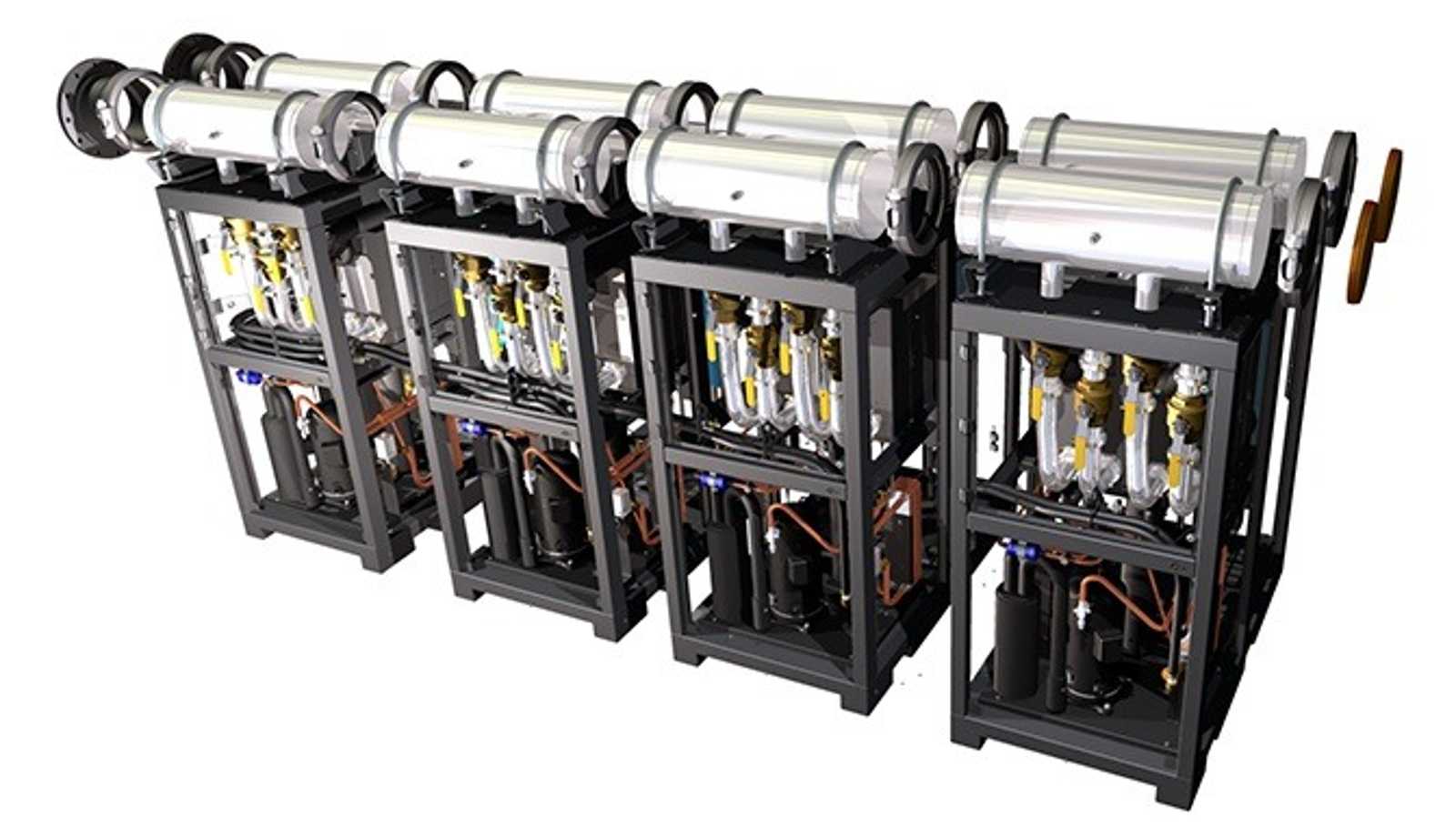

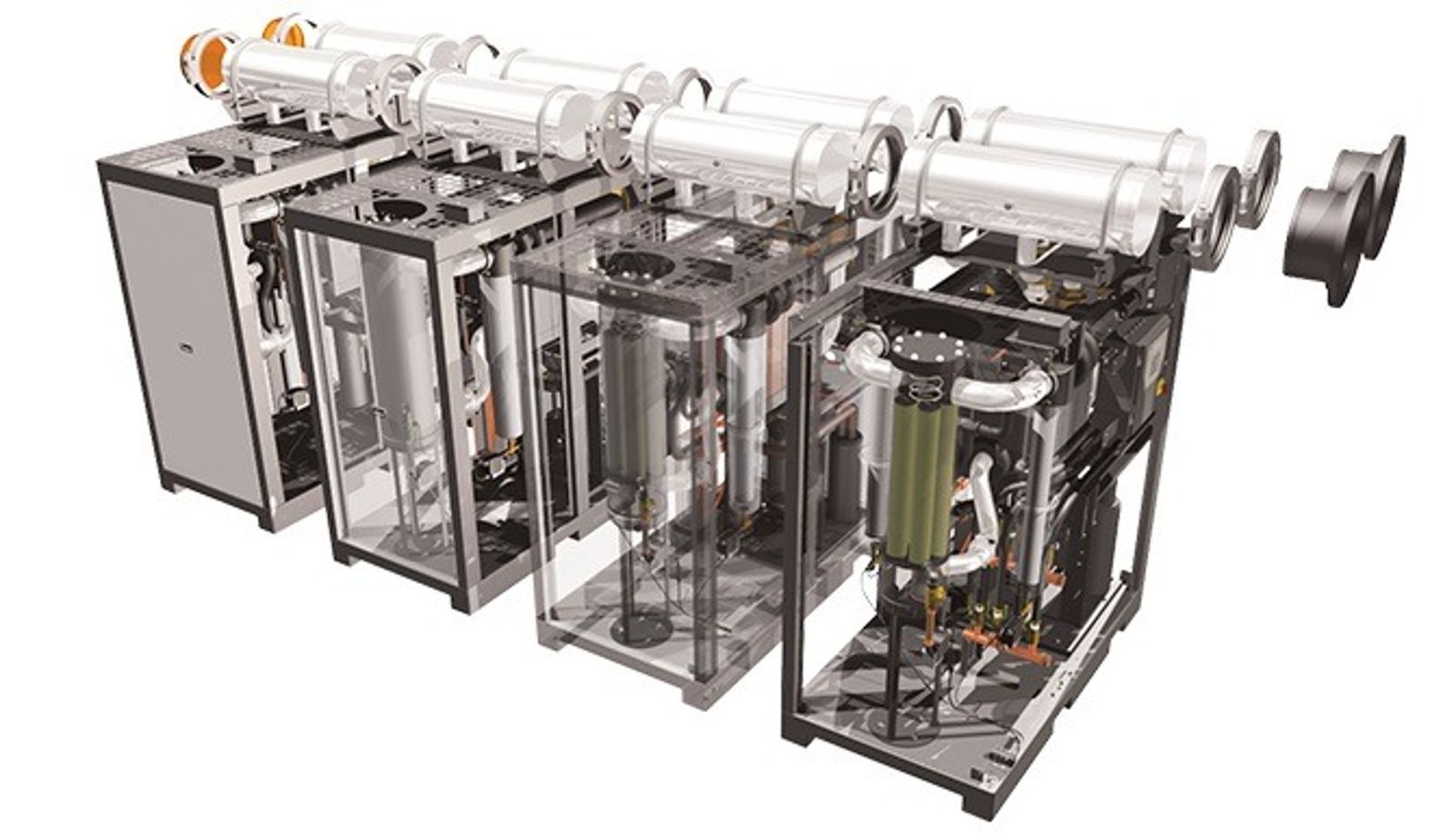

The DES Series features modular construction offering multiple design variations for flexible arrangement.

Redundancy in critical components offers fault-tolerant operation, delivering optimal system reliability. The DES series offers back-up drying protection presenting alternative drying capability in the presence of component failure.

Model

Overall Dimensions

Total Weight

Height (H)

Width (W)

Depth (D)

in

lbs

DES3750

95.6

84.1

81

3,391

DES5000

95.6

84.1

81

3,474

DES6250

97.1

124.6

81

5,412

DES7500

97.1

124.6

81

5,624

DES8750

98.6

163.1

81

7,664

DES10000

98.6

163.1

81

7,876

DES11250

98.6

201.4

81

9,623

DES12500

98.6

201.4

81

9,836
